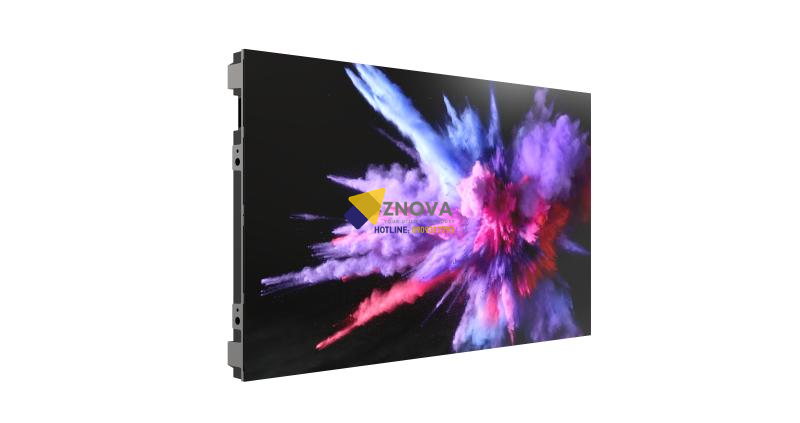

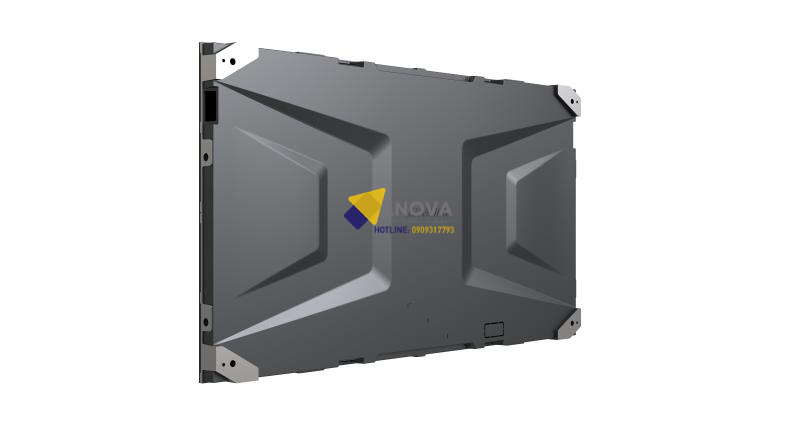

DS-D4012CW-2F

• Product Model
• Product ModelDS-D4012CW-2F

• Product Type
• Product TypeFine Pixel Pitch Indoor Full-color LED Display

• Cabinet
• Pixel ConfigurationSMD Triad LED
• Pixel Pitch1.25 mm (0.049″ )
• Pixel Pitch CategoryP1.2
• Pixel Density640000 dots/㎡
• Modules Component2 × 2
• Dimensions (W × H × D)600 mm × 337.5 mm × 29.5 mm (23.622″ × 13.287″ × 1.161″)
• Resolution480 × 270
• Area0.2025 ㎡
• Weight3.4 kg
• Cabinet MaterialAluminium die casting
• Maintenance MethodFront maintenance for all components

• Module
• Dimensions300 × 168.75 mm
• Module Resolution240 × 135

• Display
• White Balance Brightness600 cd/㎡
• Color Temperature3000-10000 K adjustable
• Viewing Angle160°(H)/160°(V)
• Contrast Ratio5000:1
• Color Uniformity≤ ± 0.003Cx，Cy
• Brightness Uniformity≥ 97％

• Processing Performance
• Driving MethodConstant current driving
• Scanning Amount60
• Frame Frequency60 Hz
• Refresh Rate3840 Hz
• Grey Level16 bit

• Power
• Max. Consumption≤ 460 W/㎡ （600nits）
• Average Consumption≤ 160 W/㎡
• Input Voltage100~240 VAC ± 10％

• Working Environment
• Working Temperature-10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
• Working Humidity10% to 60% RH (without condensation)
• Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
• Storage Humidity10% to 85% RH (without condensation)
• General
• Package Dimensions (W × H × D)722 (W) mm × 438 (H) mm × 193 (D) mm (28.425 ” × 17.244 ” × 7.598 ”)
• Packing List

  Regulatory Compliance and Safety Information × 1

  Several connecting screws, light beads, driver IC, iron sheets

• G.W.4.5 kg（1 package in 1 box）
• Net Weight3.4 kg

Data sheet:DS-D4012CW-2F

Quick Start Guide:DS-D4012CW-2F
