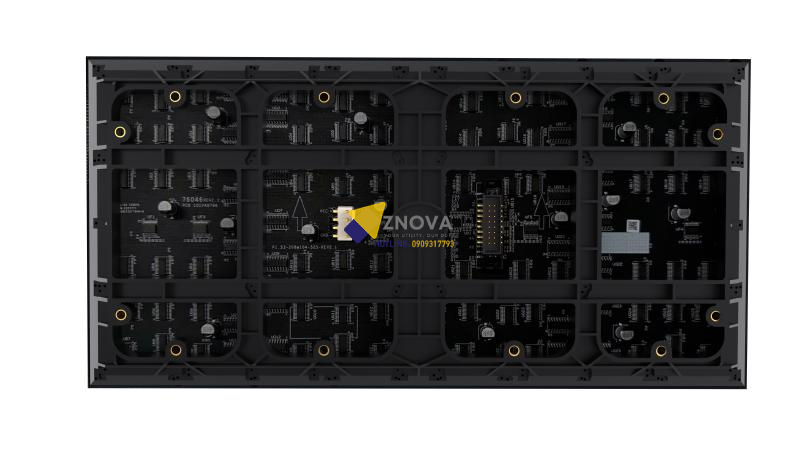

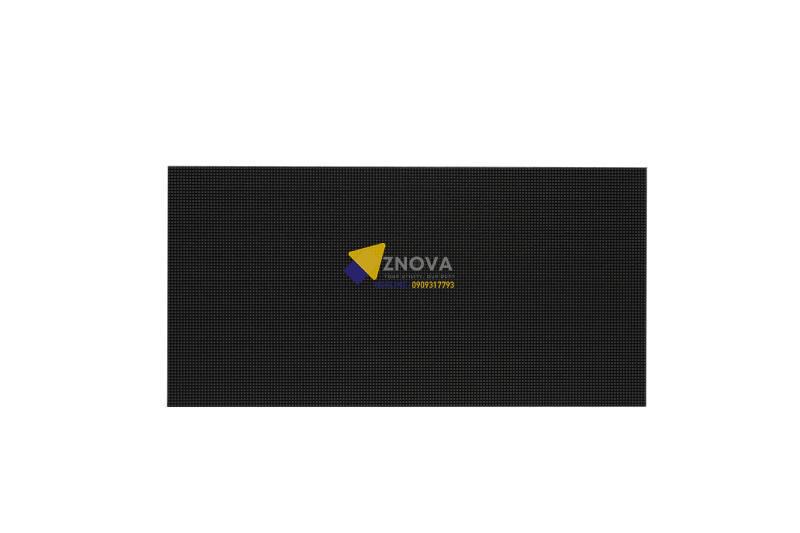

Module LED Trong Nhà P.186-DS-D41Q18CA-1PHT

Module LED Trong Nhà P.186-DS-D41Q18CA-1PHT

Part: LEIN186

• Product Model
• Product ModelDS-D41Q18CA-1PHT

• Module
• Pixel ConfigurationSMD Triad LED
• Pixel Pitch1.86 mm
• Lamp Bead Dimensions1515
• Dimensions (W × H × D)320 mm × 160 mm × 16.6 mm(12.6” × 6.3” × 0.65”)
• Resolution172 × 86
• Pixel Density288906
• Signal Source InterfaceHUB75E

• Display
• White Balance Brightness550cd/㎡
• Color Temperature3000—10000K adjustable
• Viewing Angle160°(H)/160°(V)
• Brightness Uniformity≥97%
• Color Uniformity≤ ± 0.003Cx，Cy
• Contrast Ratio3000:1
• Refresh Rate3840 Hz

• Processing Performance
• Scanning Amount43
• Grey LevelUp to 16 bit

• Power
• Max. Consumption≤ 600 W/㎡
• Average Consumption＜ 290 W/㎡
• Input VoltageDC：4.5~5V

• Working Environment
• Working Temperature-10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
• Working Humidity10% to 80% RH (without condensation)
• Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
• Storage Humidity10% to 85% RH (without condensation)

• General
• Package Dimensions (W × H × D)673 (W) mm × 453 (H) mm × 390 (D) mm(26.496″ × 17.834″ × 15.354″)（40 cabinets in 1 box）
• Packing List

  Several LED lamp beads and IC components

  Several signal cables and power cables

• Gross Weight0.61 kg (1.34 lb)
• Net Weight0.48 kg (1.06 lb)

Datashet: Module LED Trong Nhà P.186-DS-D41Q18CA-1PHT
