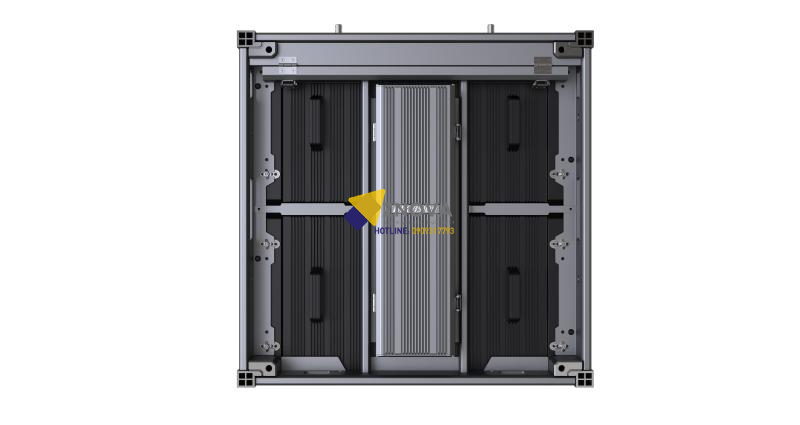

P3.9 Outdoor Fixel LED Display Unit

Liên hệ

Support front and rear maintenance
Using aluminum chassis with good heat dissipation, workable under 65 °C
Apply unique technology, maximally saving 30% energy
Various cabinet sizes, applying to diverse scenes

Xem ví dụ

#w2w-widget-flyout ul{--wpr-bg-f0b5b80b-9f0f-4381-b523-ad1748b6b358: url('https://znovatech.com/wp-content/plugins/aio-tools/public/assets/images/background.png');}.icon-zalo{--wpr-bg-4d0958ce-5fd8-4e40-88f2-525102f79c1c: url('https://znovatech.com/wp-content/plugins/aio-tools/public/assets/images/icon-zalo.png');}button.pswp__button{--wpr-bg-f6889d7d-05b0-4424-bdeb-e97caff0d6fb: url('https://znovatech.com/wp-content/plugins/woocommerce/assets/css/photoswipe/default-skin/default-skin.png');}.pswp__button,.pswp__button--arrow--left:before,.pswp__button--arrow--right:before{--wpr-bg-da9eae71-7599-49ea-afe3-ed0644fb4090: url('https://znovatech.com/wp-content/plugins/woocommerce/assets/css/photoswipe/default-skin/default-skin.png');}.pswp__preloader--active .pswp__preloader__icn{--wpr-bg-17e3f6e0-2dd5-4046-bcbf-4e3f60290dbc: url('https://znovatech.com/wp-content/plugins/woocommerce/assets/css/photoswipe/default-skin/preloader.gif');}.pswp--svg .pswp__button,.pswp--svg .pswp__button--arrow--left:before,.pswp--svg .pswp__button--arrow--right:before{--wpr-bg-89ff4009-9e55-492d-88ba-baffb79e20e0: url('https://znovatech.com/wp-content/plugins/woocommerce/assets/css/photoswipe/default-skin/default-skin.svg');}h2.we-stand__top-title{--wpr-bg-56c2d5c9-49b2-4627-88d4-edeefaf26273: url('https://znovatech.com/wp-content/uploads/2022/05/tech-bg-1-1-1-300x200.jpg');}h2.we-stand__top-title{--wpr-bg-4e86dc0f-f738-4872-9e27-6af35aa21a08: url('https://znovatech.com/wp-content/uploads/2022/05/tech-bg-1-1-1-300x200.jpg');}.fancy-underline:after{--wpr-bg-d179d08e-bedd-4a92-98d6-bd5b7d6f836f: url('https://znovatech.com/wp-content/themes/flatsome/assets/img/underline.png');}.slider-style-shadow .flickity-slider>:before{--wpr-bg-dfa29842-e567-407c-83ca-e1aaf7100568: url('https://znovatech.com/wp-content/themes/flatsome/assets/img/shadow@2x.png');}.shop-page-title.featured-title .title-bg{--wpr-bg-fd20044c-006f-4482-bea4-8ad38b672d59: url('https://znovatech.com/wp-content/uploads/2024/08/P4.8-Outdoor-LED-Display-Unit.png');}h2.we-stand__top-title{--wpr-bg-48f63353-7578-49bd-ac28-5f7bba936de3: url('https://znovatech.com/wp-content/uploads/2022/05/tech-bg-1-1-1-300x200.jpg');}

Danh mục: Hikvision, Màn hình hiển thị, Màn Hình LED, Outdoor LED Displays Thẻ: P3.9 Outdoor Fixel LED Display Unit

Cabinet
Pixel ConfigurationSMD Triad LED
Pixel Pitch CategoryP3.91
Pixel Pitch3.91 mm
Modules ComponentAluminium Shell
Dimensions (W × H × D)500 mm × 750 mm × 96.7 mm
Resolution128 × 192
Weight33kg/㎡
Pixel Density65536 dots/m²
Cabinet MaterialAluminium Profile
Maintenance MethodFront/Back Maitence
Protection LevelIP67(F)/IP66(R)

Display
White Balance Brightness7500 cd/m²
Color Temperature3000K-10000K
Viewing Angle160°(H)/120°(V)
Brightness Uniformity≧97%
Color Uniformity≤ ± 0.003Cx， Cy
Contrast Ratio12500:1

Processing Performance
Driving MethodConstant Current
Frame Frequency50/60HZ
Refresh Rate3840
Grey Level14bit

Power
Average Consumption＜ 210 W/㎡
Max. Consumption≤ 650 W/㎡

Working Environment
Working Temperature-30℃-65 ℃
Working Humidity10% to 95% RH (non-condensing)
Storage Temperature-35℃~65℃
Storage Humidity10% to 95% RH (non-condensing)

General
Power Supply110~220 VAC ± 15%
Lifespan100000 Hours
